🧩 EasyTangibleTable for Unity

---

🚀 Overview

EasyTangibleTable is a lightweight Unity package for building tangible table applications using the TUIO protocol.

It allows Unity apps to detect, track, and interact with fiducial markers (tags) on interactive surfaces such as touch tables and projection systems.

The package provides:

• a clean event-driven API
• a component-based tag controller system
• an extensible architecture for interactive installations and R&D projects

⚙️ Features

• ✅ Detect tangible tags using TUIO protocol
• ✅ Track tag position, rotation, and movement
• ✅ Event-driven architecture
• ✅ Create custom tag behaviors
• ✅ Support for multiple tags simultaneously
• ✅ Built-in target alignment detection
• ✅ Clean EasyTT API
• ✅ Designed for interactive installations and R&D prototypes

Perfect for:

🧩 Tangible user interfaces 🎮 Interactive installations 🧪 R&D prototypes 🏛️ Museum installations 🎥 Multi-object interactive demos

---

📦 Installation

EasyTangibleTable requires extOSC to receive TUIO messages.

Follow the installation steps in order.

1️⃣ Install extOSC (Required) via Unity Package Manager (Git URL)

1. Open Unity → Window → Package Manager
2. Click + → Add package from Git URL
3. Paste the following: https://github.com/IreshSampath/extOSC.git#upm
4. Click Install

2️⃣ Install EasyTangibleTable via Unity Package Manager (Git URL)

1. Open Unity → Window → Package Manager
2. Click + → Add package from Git URL
3. Paste the following: https://github.com/IreshSampath/unity-assets-easy-tangible-table.git
4. Click Install

---

🧰 Import the Samples

After installing the package:

• 1️⃣ Open Package Manager
• 2️⃣ Select EasyTangibleTable
• 3️⃣ Go to the Samples tab
• 4️⃣ Click Import

---

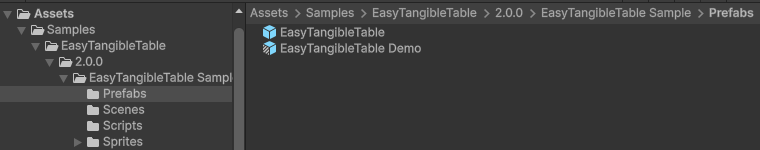

🎮 Available Sample Prefabs

Inside the imported sample, you will find two prefabs.

EasyTangibleTable

• Receiving TUIO tag and touch data
• Displaying tag details
• Debug logging

⚠️ EasyUIConsole is required for debug output.

EasyTangibleTable Demo

This prefab demonstrates example tag behaviours and abobe bsic functaionalties.

Example tag controllers included:

TagAController
TagBController
TagCController
TagDController

These show how to create custom tag interactions, such as:

• rotation-based UI states
• button interactions
• color selection
• alignment triggers

⚠️ EasyUIConsole is required for debug output.

---

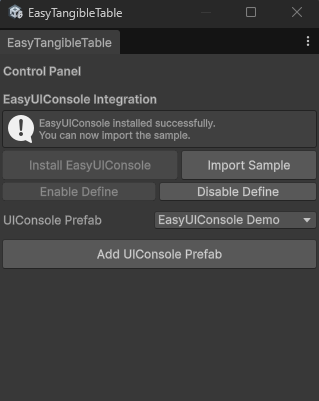

3️⃣ Import EasyUIConsole

⚠️ This sample requires EasyUIConsole to display the logs.

Without EasyUIConsole the system still works, but debug messages will not appear.

---

🧠 Basic Usage

EasyTangibleTable provides a simple API via EasyTT.

Example

using GAG.EasyTangibleTable;

void OnEnable()
{
    EasyTT.TagAligned += OnTagAligned;
    EasyTT.TagRemoved += OnTagRemoved;
}

void OnDisable()
{
    EasyTT.TagAligned -= OnTagAligned;
    EasyTT.TagRemoved -= OnTagRemoved;
}

void OnTagAligned(int tagID)
{
    Debug.Log($"Tag aligned: {tagID}");
}

void OnTagRemoved(int tagID)
{
    Debug.Log($"Tag removed: {tagID}");
}

🎮 Create Custom Tag Behaviours

Each tangible tag can have its own controller script.

EasyTangibleTagControllerBase

Example

using GAG.EasyTangibleTable;
using UnityEngine;

public class MyCustomTagController : EasyTangibleTagControllerBase
{
    protected override void OnTargetReached()
    {
        Debug.Log("Tag reached target!");
    }

    protected override void OnTargetDeparted()
    {
        Debug.Log("Tag left target!");
    }
}

Attach this script to your tag prefab.

📡 Available Events

EasyTangibleTable exposes multiple events:

EasyTT.TagPlaced
EasyTT.TagUpdated
EasyTT.TagMoved
EasyTT.TagRotated
EasyTT.ActiveTagsUpdated
EasyTT.TagAligned
EasyTT.TagAlignmentLost
EasyTT.TagRemoved

These events allow you to build complex interactions such as:

• UI triggers
• object manipulation
• multi-tag interactions
• experience control

---

🎨 Example Use Cases

EasyTangibleTable can be used for:

• tangible games
• interactive tables
• educational installations
• museum exhibits
• research experiments

---

📜 License

IT License — Free for commercial and personal use.

---

🙏 Thank You

Thanks for using EasyTangibleTable!

• Feel free to contribute

⭐ Star the repo 🐞 Report issues 🚀 Suggest improvements

---

👤 Author

Iresh Sampath

🔗 LinkedIn Profile
