Recyclable Scroll Rect for Unity UI

An ListView implementation for Unity’s UI that recycles item views, designed to handle large data sets efficiently.

📘 Features

• Seamless infinite (or large-scale) scrolling of UI lists.
• Supports vertical, horizontal layouts with reverse arrangments.
• Supports grid layouts with start axes and corners.
• Supports pages layouts (like TikTok).
• Reuses (recycles) item views instead of creating/destroying repeatedly.
• Supports multiple gameObject prototypes.
• Supports unknown item sizes with dynamic layout recalculation.
• Supports extra visible items for smoother scrolling.
• Supports reloading of data source.

🎬 Demo

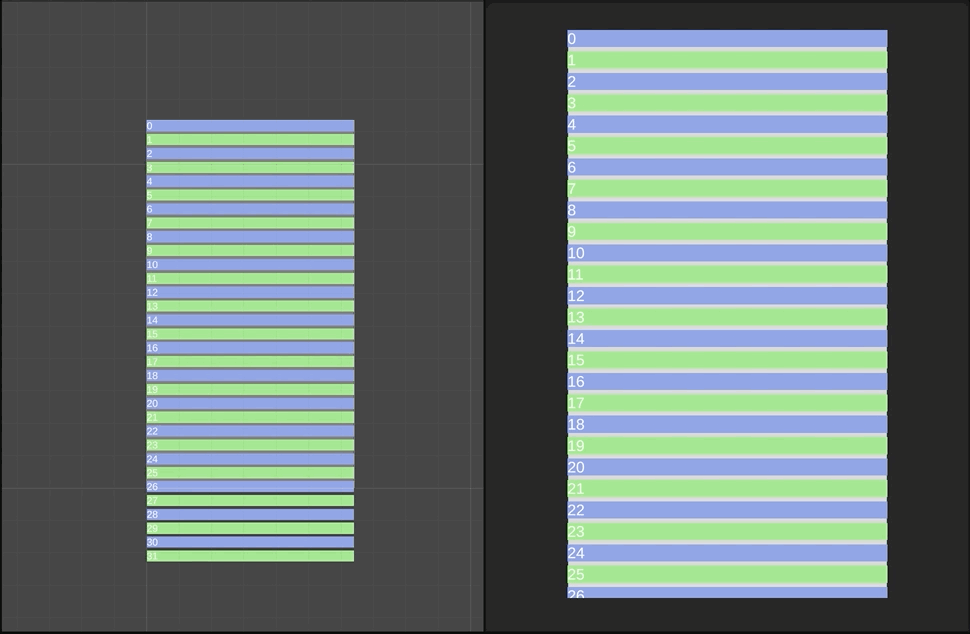

Vertical RSR

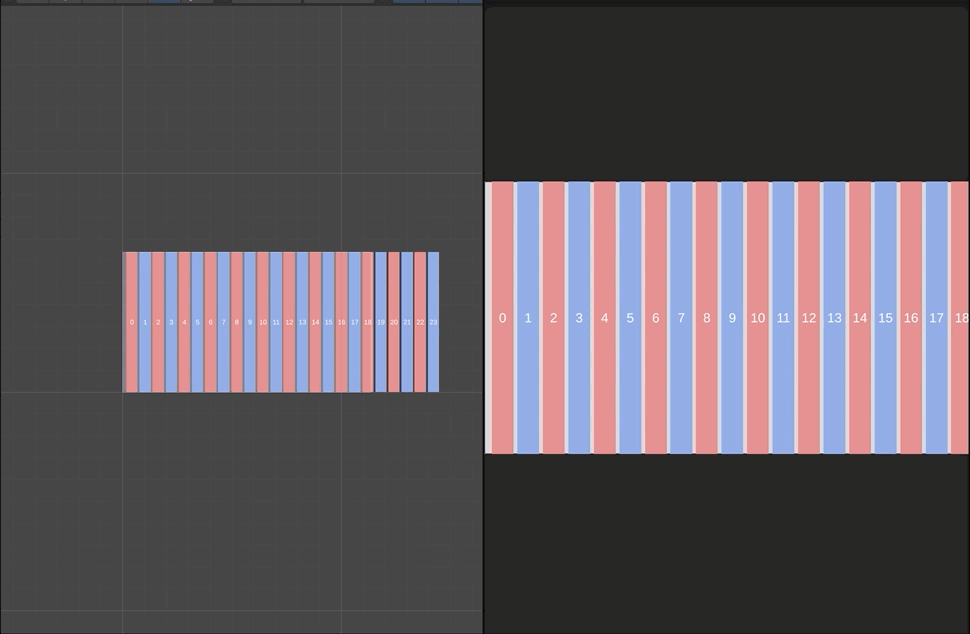

Horizontal RSR

Grid RSR

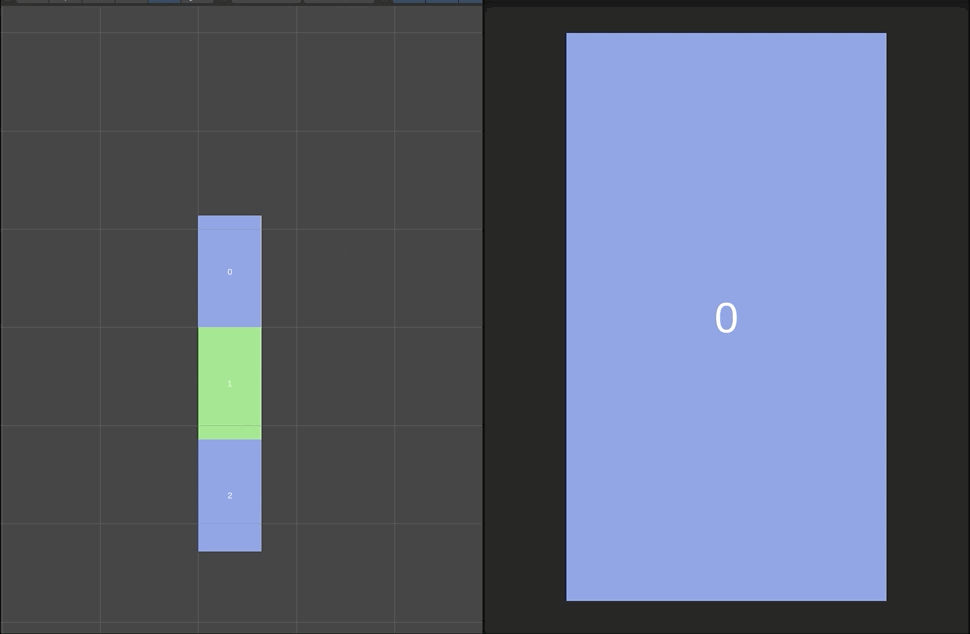

Paged RSR

Vertical Dynamic RSR with Data Source Reloading

🚀 Installation

1 - OpenUPM

Option 1 — Install via OpenUPM CLI

If you have the OpenUPM CLI installed, run this command in your Unity project root:

openupm add com.migzro.recyclablescrollrect

Option 2 — Install manually via Unity Package Manager

• Open 'Edit / Project Settings / Package Manager'.
• Add a new Scoped Registry with
  • Name: OpenUPM
  • URL: https://package.openupm.com
  • Scope(s): com.migzro.recyclablescrollrect
• Go to 'Window / Package Manager / Packages / My Registries'.
• Install the Recyclable Scroll Rect package.

You can also add it manually by editing your manifest.json file:

"scopedRegistries": [
    {
        "name": "OpenUPM",
        "url": "https://package.openupm.com",
        "scopes": [
          "com.migzro.recyclablescrollrect"
        ]
    }
]

2 - Unity Package

Download the latest Unity package from the Releases page.

🧩 Samples

Importing from Unity Package Manager

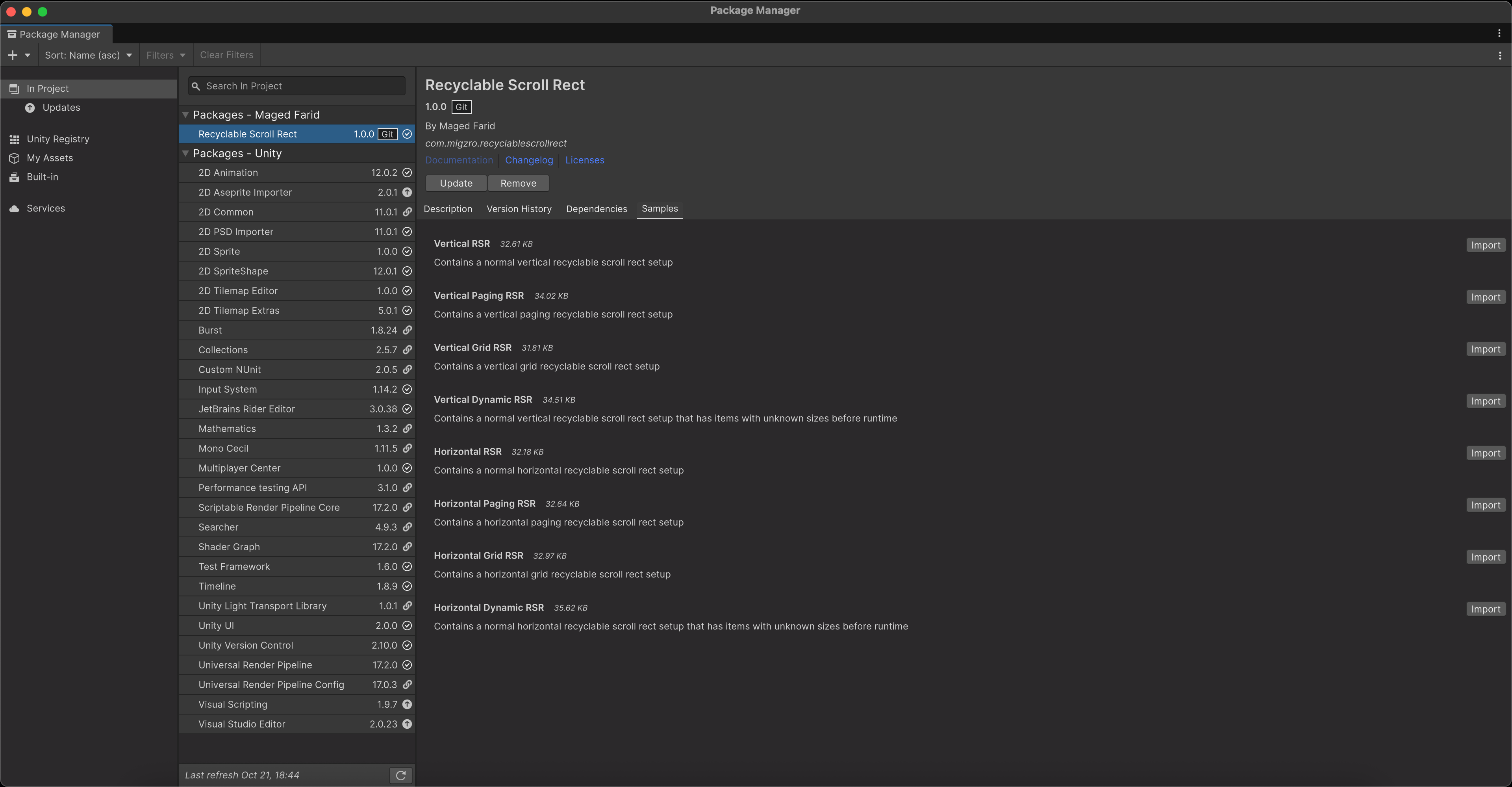

After installing via Package Manager, go to Window > Package Manager, select Recyclable Scroll Rect, and click Samples tab to import any demo.

Importing from Unity Package

Open the sample scenes located in Assets/Recyclable Scroll Rect/Samples to see examples of vertical, horizontal, grid, and paged layouts.

⚙️ Usage

1. Add the required RSR component to a ScrollRect GameObject.
2. Implement the IDataSource interface in a MonoBehaviour script to provide data and item views.

public class VerticalRSRDemo : MonoBehaviour, IRSRDataSource
    {
        [SerializeField] private int _itemsCount;
        [SerializeField] private RSR _scrollRect;
        [SerializeField] private GameObject[] _prototypeItems;

        private List<string> _dataSource;
        private int _itemCount;

        public int ItemsCount => _itemsCount;
        public bool IsItemSizeKnown => true;
        public GameObject[] PrototypeItems => _prototypeItems;

        private void Start()
        {
            _dataSource = new List<string>();
            for (var i = 0; i < _itemsCount; i++)
                _dataSource.Add(i.ToString());
            _scrollRect.Initialize(this);
        }

        public float GetItemSize(int itemIndex)
        {
            return 40.22f;
        }

        public void SetItemData(IItem item, int itemIndex)
        {
            (item as DemoItemPrototype)?.Initialize(_dataSource[itemIndex]);
        }

        public void ItemHidden(IItem item, int itemIndex)
        {
        }

        public GameObject GetItemPrototype(int itemIndex)
        {
            if (itemIndex % 2 == 0)
                return _prototypeItems[0];
            return _prototypeItems[1];
        }

        public void ItemCreated(int itemIndex, IItem item, GameObject itemGo)
        {

        }

        public bool IsItemStatic(int itemIndex)
        {
            return false;
        }

        public void ScrolledToItem(IItem item, int itemIndex)
        {
        }

        public bool IgnoreContentPadding(int itemIndex)
        {
            return false;
        }

        public void PullToRefresh()
        {
        }

        public void PushToClose()
        {
        }

        public void ReachedScrollStart()
        {
        }

        public void ReachedScrollEnd()
        {
        }

        public void LastItemIsVisible()
        {
        }
    }
}

🔮 Coming Soon

Here’s what’s planned for upcoming releases of Recyclable Scroll Rect:

• Sections with headers and footers
• Support for carousel mode

🧪 Why Use This?

For large lists or grids (hundreds/thousands of items), regular UI instantiation is heavy.
This component reuses item views to keep performance smooth and memory low.

🧩 Example Use Cases

• Chat message lists
• Inventories
• Infinite scrolling feeds
• Thumbnail grids

📝 Release Notes

See CHANGELOG.md for details.

📄 License

MIT License — see LICENSE.md.

🙋 Support

Open an issue on GitHub for help or feature requests.

☕ Support Me

If this tool helped you, consider buying me a coffee:

Thanks for using Recyclable Scroll Rect — happy scrolling! 🎉
