Schema-Unity

Schema-Unity provides Unity integrations for the Schema content management tool, enabling robust, flexible, and maintainable management of game design data within Unity projects.

Overview

Click to watch overview video

Highlights

• Table editor with fast, virtualized grid and publishing



• Rich attribute type system



• Code Generation for Runtime usage

public partial class ProfilesEntry : EntryWrapper
{
        /// <summary>
        /// Represents a single entry (row) in the 'Profiles' data scheme.
        /// </summary>
        public ProfilesEntry(DataScheme dataScheme, DataEntry entry) : base(dataScheme, entry) {}


        /// <summary>
        /// Gets the value of 'ID'.
        /// </summary>

        public string ID => DataEntry.GetDataAsString("ID");

        /// <summary>
        /// Gets the value of 'Personality Notes'.
        /// </summary>

        public string PersonalityNotes => DataEntry.GetDataAsString("Personality Notes");

        /// <summary>
        /// Gets the value of 'InitialPlayerConnection'.
        /// </summary>

        public bool InitialPlayerConnection => DataEntry.GetDataAsBool("InitialPlayerConnection");

        /// <summary>
        /// Gets the value of 'Profile Picture'.
        /// </summary>

        public string ProfilePicture => DataEntry.GetDataAsString("Profile Picture");

    }

Documentation

• Start here: docs/Overview
• Quickstart: docs/Quickstart
• Key Concepts: docs/KeyConcepts
• Unity Editor Guide: docs/EditorGuide
• Runtime Integration: docs/RuntimeGuide
• FAQ & Troubleshooting: docs/FAQ

Features

• Schema Core: C# library for defining, loading, and validating data schemas.
• Unity Integration: Custom Unity editor tools for managing schema-based data.
• Sample Content: Example JSON and CSV files for rapid prototyping and testing.
• Extensible: Easily add new data types, serialization formats, and editor extensions.

Getting Started

See the full Quickstart.

1) Quick Start: Integrate into an existing project (Unity Package Manager)

Install via OpenUPM

1. Open Edit/Project Settings/Package Manager
2. Add a new Scoped Registry (or edit the existing OpenUPM entry)
   • Name: package.openupm.com
   • URL: https://package.openupm.com
   • Scope(s): com.devzappy.schema.unity
3. Click Save or Apply
4. Open Window/Package Manager
   • Click +
   • Select Add package by name... or Add package from git URL...
   • Paste com.devzappy.schema.unity into name
   • Paste 0.3.1 into version
   • Click Add

Alternatively, merge the snippet to Packages/manifest.json

{
    "scopedRegistries": [
        {
            "name": "package.openupm.com",
            "url": "https://package.openupm.com",
            "scopes": [
                "com.devzappy.schema.unity"
            ]
        }
    ],
    "dependencies": {
        "com.devzappy.schema.unity": "0.3.1"
    }
}

Install via Git URL (no download required):

1. Open your Unity project

2. Open Window > Package Manager

3. Click + and select Add package from git URL...

4. Paste: https://github.com/zappy-dev/Schema-Unity.git?path=/SchemaPlayground/Packages/com.devzappy.schema.unity#main

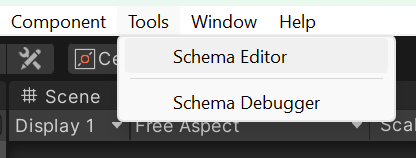

5. After install, open Tools > Schema Editor



Try it quickly (optional):

• Create a simple scheme and entries, then publish and generate C#.
• Initialize at runtime with Schema.Runtime.SchemaRuntime.Initialize().

2) Local Setup (clone the repo)

Prerequisites:

• Unity (2021.3+ recommended)
• .NET SDK 8 (for building and testing core libraries)

Steps:

1. Clone:

   git clone https://github.com/zappy-dev/Schema-Unity.git
   cd Schema-Unity


2. Open SchemaPlayground/ in Unity
3. Try it now:
   • Load Assets/Scenes/SampleScene.unity

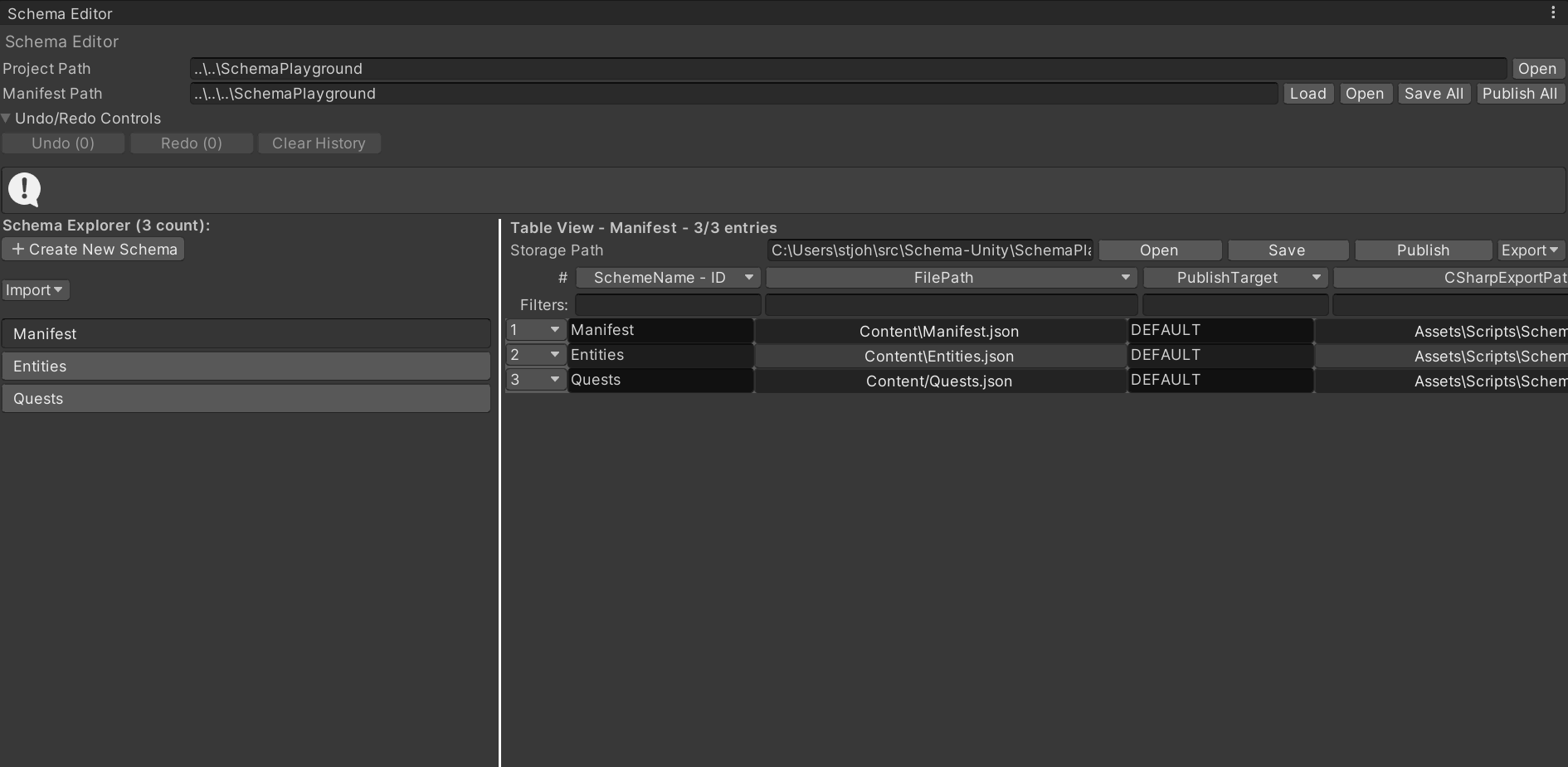

   • Open Tools > Schema Editor and explore Manifest, Entities, Quests
   • Press Play to see the Player2DController sample
4. Build core libraries (optional):
   • Open Schema/Schema.sln in Visual Studio or Rider and build
5. Run tests (optional):
   • dotnet test Schema/Schema.Core.Tests/Schema.Core.Tests.csproj

Add as local package from disk (optional):

1. Window > Package Manager
2. Click + > Add package from disk...
3. Select SchemaPlayground/Packages/com.devzappy.schema.unity/package.json

Usage

• Use the Unity Editor tools (under Tools > Schema Editor) to import, edit, and validate schema-based data.
• Place your JSON/CSV data files in SchemaPlayground/Content/.
• Extend or customize schema definitions in SchemaPlayground/Packages/com.devzappy.schema.unity/Core/Data/.

Project Structure

Schema-Unity/
  Schema/                  # Core C# library and tests
    Schema.Core/
    Schema.Core.Tests/
  SchemaPlayground/        # Unity project with sample content and editor extensions
    Content/
    Packages/
      com.devzappy.schema.unity/
        Core/
        Editor/
  docs/                    # Guides and reference documentation

Contributing

Contributions are welcome! See docs/Contributing.

Support

For help, email support@devzappy.com.

If you find Schema-Unity helpful and want to support ongoing development:

• GitHub Sponsors: https://github.com/sponsors/zappy-dev
• Ko‑fi: https://ko-fi.com/devzappy

License

This project is licensed under the MIT License. See the LICENSE file for details.
