Simple-Item-Slot-UI

Overview

Simple Item Slot UI is a lightweight Unity package for creating draggable item slots in your UI. This package provides two core components—ItemSlot and DraggableItem—that let you drag items between slots and optionally swap them if a slot is already occupied. It’s designed to be minimal and straightforward, making it easy to integrate or modify for your own projects.

---

Installation

1. Git or Package Manager

1. Clone or download this repository.
2. In your Unity project, open the Package Manager.
3. Click the + button in the upper-left corner, select Add package from disk..., and browse to the Packages/SimpleItemSlotUI folder in the cloned repository.
4. Click Add to install.

Alternatively, you can add this repository as a Git URL:

1. Open the Package Manager.

2. Click the + button, select Add package from git URL....

3. Paste the repository URL (for example):

   https://github.com/kwan3854/Simple-Item-Slot-UI.git?path=/Packages/SimpleItemSlotUI


4. Click Add.

Repository & Sample

This repository may include a sample scene demonstrating how to set up and use the two main components (ItemSlot and DraggableItem). To try it out:

1. Clone this repository.
2. Open the Unity project containing the package.
3. Open the sample scene under the Samples or Example folder (if provided) to see how the item slots and draggables are configured.

---

Usage

1. Setting up in the Editor

1. Create a UI slot:
   • Add an empty GameObject (e.g., Slot1) to your Canvas.
   • Attach the ItemSlot component to it.

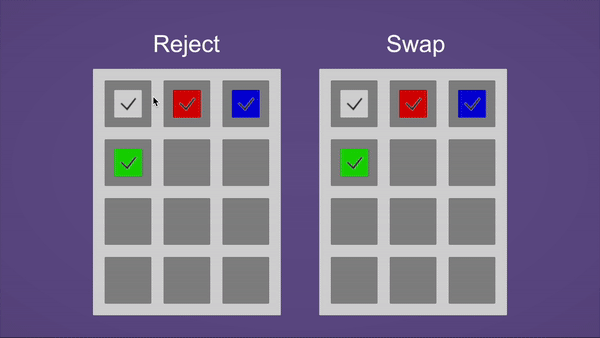

   • Choose a SlotBehaviour in the Inspector:
     • Reject: The slot will reject an incoming item if it’s already occupied.
     • Swap: The slot will swap the existing item with the dragged one.
2. Create a draggable item:
   • Add a UI element (e.g., an Image) to your Canvas.
   • Attach the DraggableItem component to it.
   • In the Inspector, assign a Parent to move the object to when dragging (Can be None).
     • If none is assigned, it defaults to the root of the scene or the root canvas.
3. Place the draggable item inside the slot:
   • In the Hierarchy, make the DraggableItem a child of an ItemSlot.
4. Adjust visuals (optional):
   • Modify the Image on the DraggableItem for your desired look.
   • Set up additional UI elements (like borders, texts, etc.) under the same hierarchy if needed.

Once set up, you can click and drag the item to another ItemSlot. If both slots have SlotBehaviour = Swap, the two items will swap places.

---

Script Reference

1. ItemSlot Component

• Namespace: SimpleItemSlotUI.Runtime
• Implements: IDropHandler
• Key Property:
  • behaviour (SlotBehaviour enum): Determines how the slot handles incoming items.
    • Reject: Ignores drops if the slot is already occupied.
    • Swap: Swaps existing item with the incoming item if occupied.
• Key Method:
  • OnDrop(PointerEventData eventData): Triggered when a draggable item is dropped onto the slot.
  • SwapItems(Transform currentItem, DraggableItem draggableItem): Handles swapping items between slots.

2. DraggableItem Component

• Namespace: SimpleItemSlotUI.Runtime
• Implements: IBeginDragHandler, IDragHandler, IEndDragHandler
• Key Property:
  • SnapTo: Internal property that determines where the item should return (parent slot) after dragging ends.
• Key Methods:
  • OnBeginDrag(PointerEventData eventData): Sets the initial parent to SnapTo and moves the item to a temporary parent (such as a root canvas) so it can be dragged freely.
  • OnDrag(PointerEventData eventData): Updates the position of the item to follow the pointer.
  • OnEndDrag(PointerEventData eventData): Returns the item to SnapTo and re-enables raycast targeting.
• Notes:
  • Automatically searches for MaskableGraphic components (e.g. Image) to toggle raycastTarget on drag events.

---

License

(Add your license information here, e.g., MIT License, or remove this section if not applicable.)

This project is licensed under the MIT License.
